View from the Top
By Michael Silbergleid ( Systems Contractor News )
TK Elevator's LED mesh display lights up its Atlanta HQ with a massive LED mesh display.
Let Me See

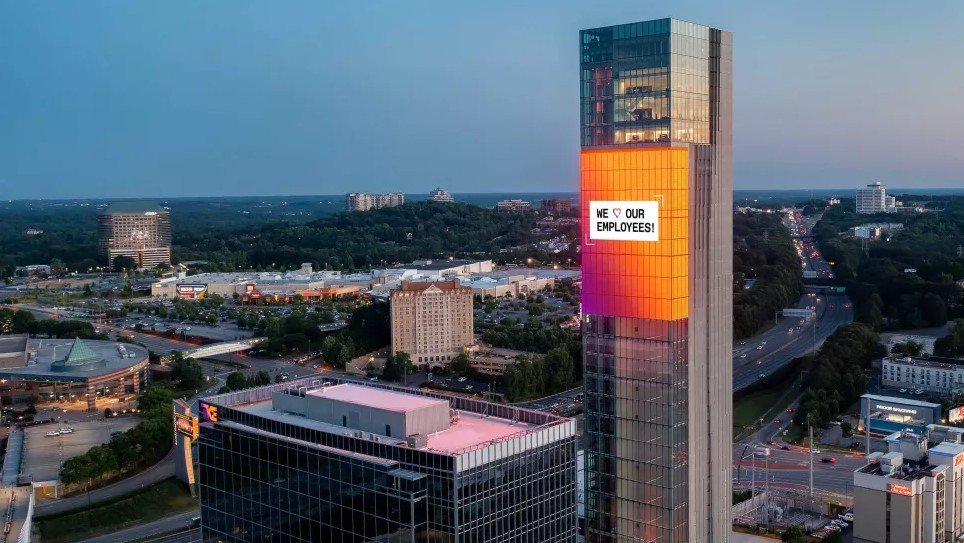

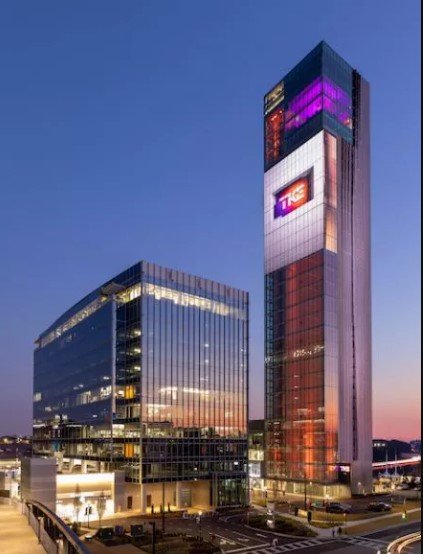

new 420-foot Innovation and Qualification Center (IQC) with an LED mesh canvas that displays the TKE logo, brand messaging, and animations. TKE tests its new elevator technologies in the IQC using 18 elevator test towers.
“At 420 feet, the IQC and test tower is the tallest building in Cobb County, so it is very visible,” said Bailey. “Factor that with one of TK Elevator’s key principles—transparency—and it became a winning idea with an eight-story blank canvas to tell our story and be part of our community.”
complex project,” said Julian Phillips, senior vice president and managing director for the XTG. “While Nanolumens was engaged by the design firm, TKE brought us in to support the project, which included the lobby showroom in the main building and the mesh LEDs on the three sides of the building.”
Let's Hang
“It’s just so large,” said DeYoung. “From a resolution perspective, there’s not that many LEDs, just a few hundred thousand, but it’s visible all the time. The scale was massive and it was complicated. It was a team effort of vision and functionality that was really an engineering project.”

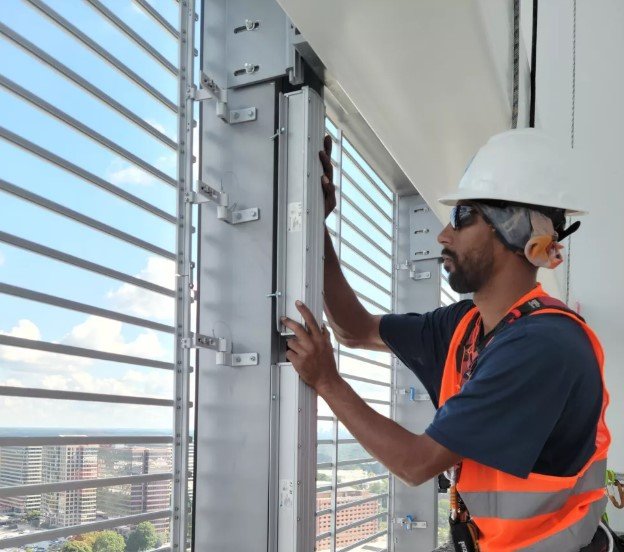

Put simply, the mesh was mounted inside the glazing by Atlanta Rigging Systems and hosted structurally by the curtain wall mullions, the slender vertical members that form the division between the windows. But it’s actually a bit more complex than that.
resolution of 1682x445 in order to appear in the correct aspect ratio when played back on the building and mullion gaps, as they represent gaps in the content requiring offsets at each daylight opening, which are the individual panes of glass. The ‘TKE Grid’ shows the input template with blue lines filling missing pixels at the mullion gaps.”
online, the system will automatically fallback.”
High-end displays aren't only visible outside the building at TKE. Other smaller Nanolumens LED installations include a video wall at the mezzanine level that overlooks the elevator shaft and the city, with a pair of displays and a BrightSign player, plus displays in three conference rooms.
The showroom in the lobby is intended for lobby visitors and those having a meeting with TKE, who can take them into a specific area of the showroom or on a full or partial tour. “It’s a mix of analog and digital, like a museum showing the workflow of mechanical devices,” DeYoung explained. “A Crestron controller handles how the scale models work, with a Navori Labs CMS system feeding content to another BrightSign system. Content is in a loop but has cut-in ability from touch enabled monitors.”
There are six segments in the showroom, each featuring a different part of TKE’s activities, such as construction, modernization, and maintenance. “One segment has a Nanolumens display with L-Acoustics immersive sound," Dieringer noted, "while some segments are as simple as a large format monitor with a touchscreen controller below or just a touchscreen monitor.”
